Starboard 2014

[francois]

Starboard 2014 :

[Pascal M]

Catalogue Starboard 2014 http://chinookleucate.files.wordpress.c ... atalog.pdf" onclick="window.open(this.href);return false;

[francois]

Quelques changements sur la gamme iSonic, dont le tail reprend pour beaucoup ce qu'on voit sur les RRD X-Fire depuis 2012 ! Pas mal de cm en plus sur les largeurs pour cette année.

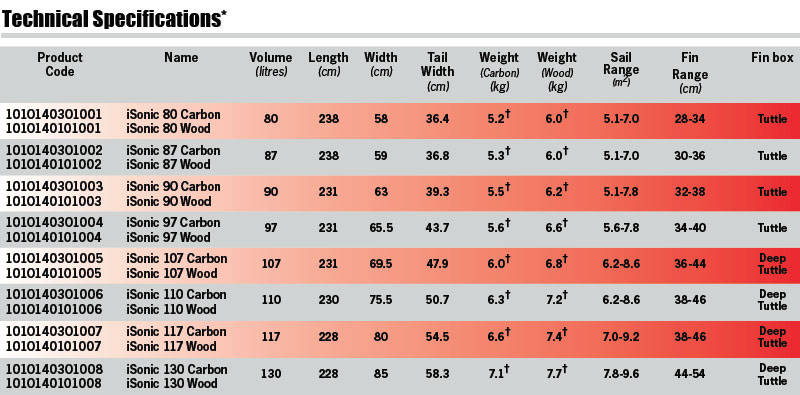

iSonic 80 : 238 cm x 58 cm x 80 L / OFO : 36.4 cm
iSonic 87 : 238 cm x 59 cm x 87 L / OFO : 36.8 cm
iSonic 90 : 231 cm x 63 cm x 90 L / OFO : 39.3 cm

iSonic 97 : 231 cm x 65.5 cm x 97 L / OFO : 43.7 cm
iSonic 107 : 231 cm x 69.5 cm x 107 L / OFO : 47.9 cm
iSonic 110 : 230 cm x 75.5 cm x 110 L / OFO : 50.7 cm

iSonic 117 : 228 cm x 80.5 cm x 117 L / OFO : 54.5 cm
iSonic 130 : 228 cm x 85.5 cm x 130 L / OFO : 58.3 cm

[francois]

BlackBox 2014 : 1950 € (Wood) / 2250 € (Carbon)




Kode 2014 : 1690 € (Technora) / 1890 € (Wood) / 2090 € (Carbon)




http://www.youtube.com/watch?v=rpzC9uFcpNU" onclick="window.open(this.href);return false;


NuEvo 2014 : 1850 € (Wood) / 2050 € (Carbon)




http://www.youtube.com/watch?v=0AwuCM7BLww" onclick="window.open(this.href);return false;


Quad 2014 : 1950 € (Wood) / 2250 € (Carbon)




http://www.youtube.com/watch?v=prsFE3zzgg8" onclick="window.open(this.href);return false;

[Olivier44]

http://www.youtube.com/watch?v=ujYXStUDF0M

[Olivier44]

Starboard Kode 103 carbon 2014 :


Photos http://www.marinesnow.jp

[paulo56]

Quelques changements sur la gamme iSonic
iSonic 130 : 228 cm x 85.5 cm x 130 L / OFO : 58.3 cm

"Il semble" que ce tableau soit faux François..

.. de Rémi Vila himself :
"Pas tout fait correct, la 130 qui remplace les 127 et 137 fait moins de 85cm de large, sinon elle ne pourrait pas être homologuée"

?

après pour les autres boards, je ne sais pas..

[francois]

Hé bien il va falloir qu'ils corrigent leur catalogue dans ce cas
http://chinookleucate.files.wordpress.c ... atalog.pdf (page 18)

Je m'étais aussi fait la réflexion pour les 85.5 cm de large qui sont hors jauge officielle pour le slalom.

[Olivier44]

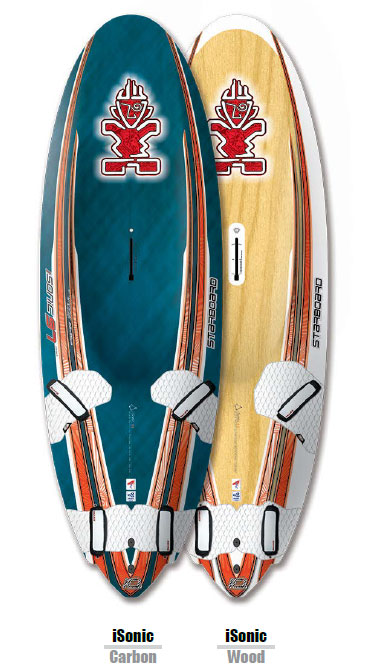

Starboard iSonic 2014 :



iSonic Description

The iSonics are Starboard’s slalom boards. They are fast racing machines designed for the highest top speeds, the highest average speeds, and the quickest accelerations with powerful overtaking abilities throughout a wide wind range.

In a nutshell, for 2014, the 80/87/90/97/107 iSonics are fully upgraded with shorter, wider and slimmer shapes and new cutaway/side cut designs that make for a wider wind range than before, more control, better acceleration and higher top speed.

The 110, 117, 130 are more evolutionary with new cut-away/side cut designs that boost top end speed and acceleration. They are a little bit thinner only and the 110 was lengthened to match the balance of the range.

The Message

MAXIMUM EFFICIENCY, SHORTER, WIDER, SLIMMER

The iconic iSonics: our flagship slalom range incorporating every ounce of Starboard R&D technology, every gram of our team’s design experience, and driven
by the most successful racing team in windsurfing.

Ever since their inception, the iSonics focus on achieving not just the highest top speeds but also the highest average speeds, the quickest accelerations, the
most effective overtaking power, the most powerful jibing performance, and all this across the widest range of conditions.

This philosophy has created innovations such as the wide outline, the thin profile, the low-nose rocker, the wide-tail, the side-cuts, the deep deck-concave and
more.

Wide, compact outlines forms the basis for each iSonic design.

The nose of each board is relatively wide, allowing for a shorter nose and a lower rocker to be used. This shorter and lower nose reduces swing weight,
reduces aerodynamic drag and improves the board’s ability to skim over chop without losing speed.

The tail of the board, just under your back foot is also relatively wide. This increases the board’s power, its overtaking potential, its jibing power, its wind range
and the leverage the rider can apply over the board to keep it under control or add extra acceleration.

What's New ?

iSonic 80, 87, 90, 97, 107 :

• Significantly upgraded shapes
  2-3cm wider, thinner profiles
  Shorter lengths more more control and wind range
  Side cuts are wider to slightly reduce the width of the wetted surface under your back foot: higher top speed and high-wind acceleration
  Secondary wingers are closed off on the deck side, eliminating the step that can crack under exceptional stress
  Tweaked cutaway designs with a more open angle

iSonic 110, 117, 130 :

• Wider side cuts to narrow down the width of the wetted surface: improved top speed and high-wind acceleration
  Tweaked cutaway designs with a more open angle
  Slight thickness reduction: approximately 3mm
  110 is 3cm longer to match the overall length/balance of other sizes

Additional Information :
The iSonics are available in two construction categories: Wood, for more control and comfort, and Carbon, for sharper acceleration, a stiffer feel and earlier planing.

The Carbon construction, internally known as Carbon Reflex, uses 45 degree biaxial carbon both deck and bottom to allo the board to flex and re-bound responsively.
This construction is ultralight, stiffd yet confortable and responsive.

No fins are supplied with the board.

[Olivier44]

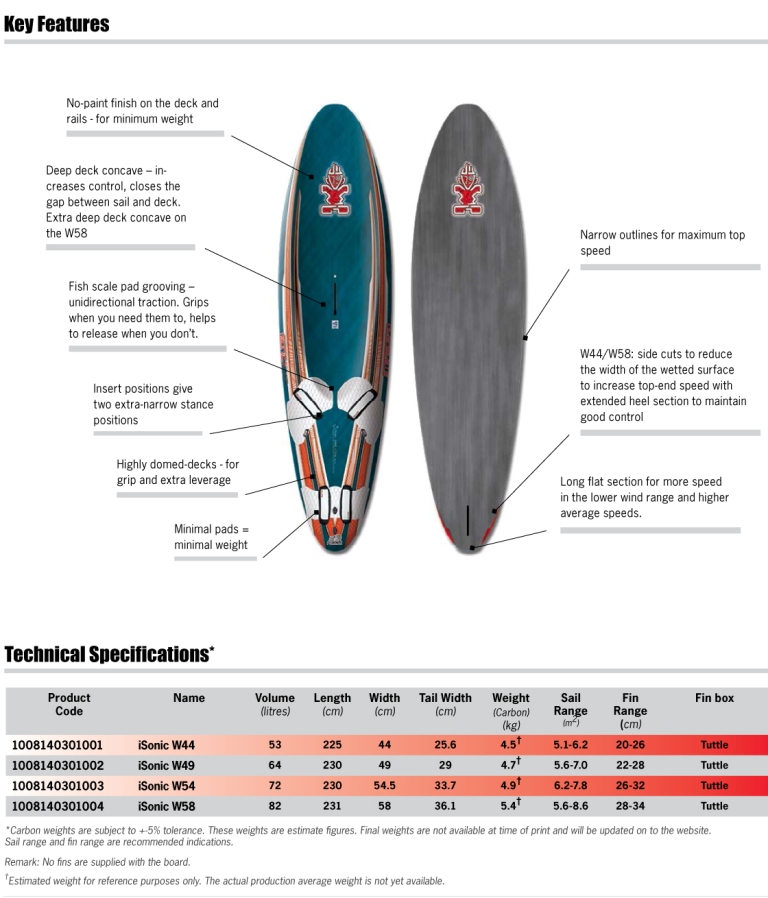

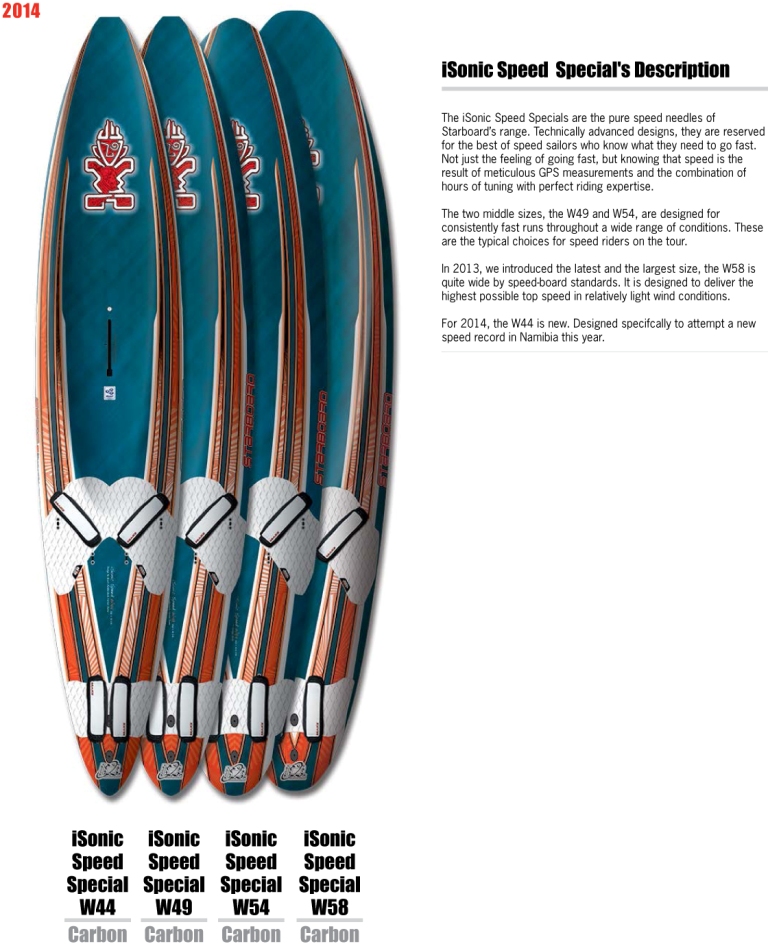

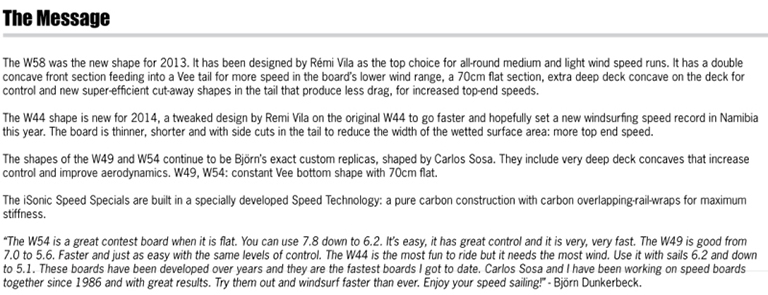

Starboard iSonic Speed Special 2014 :

[Olivier44]

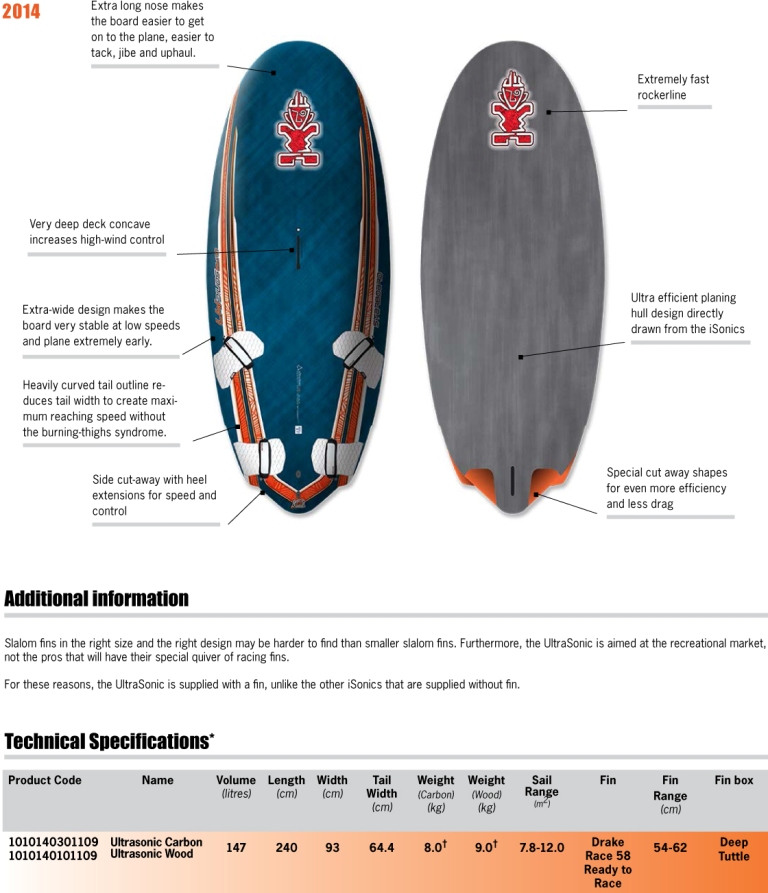

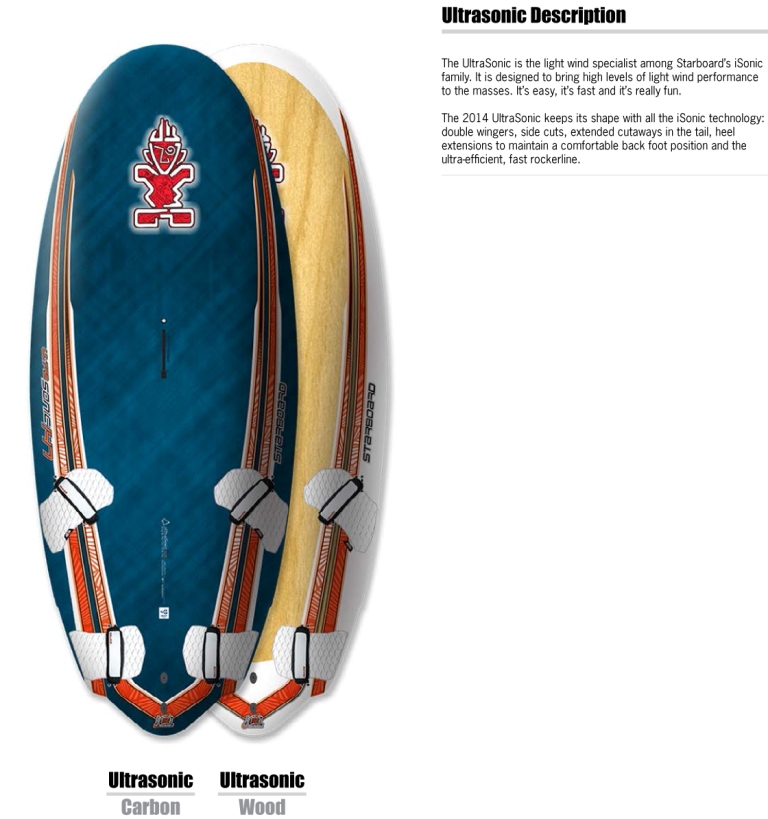

Starboard Ultrasonic 2014 :

[Olivier44]

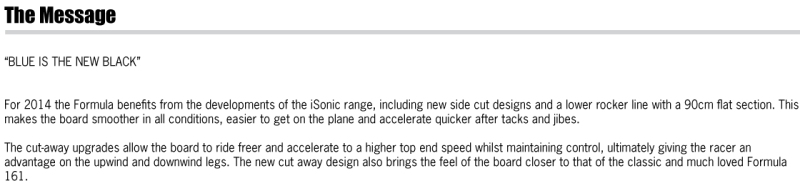

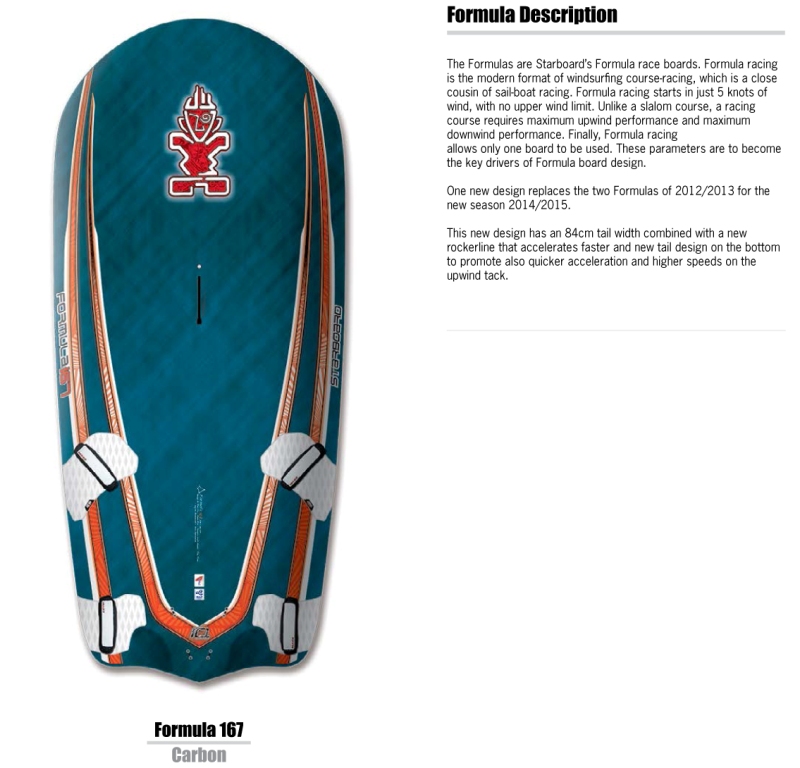

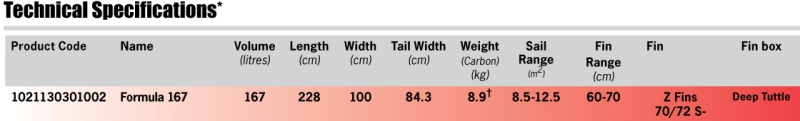

Starboard Formula 2014 :

[Olivier44]

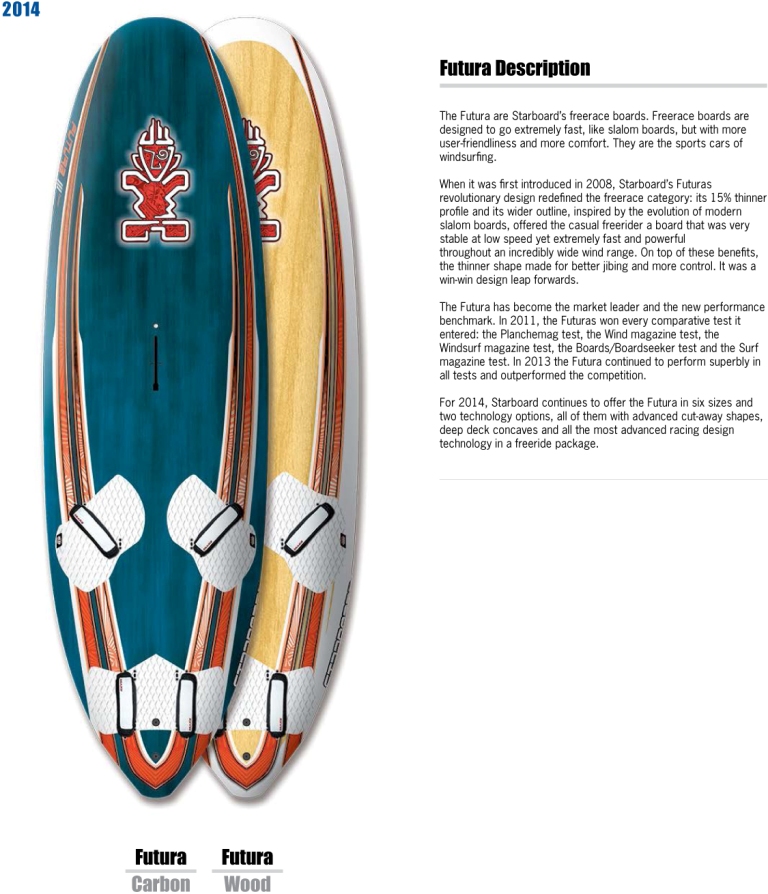

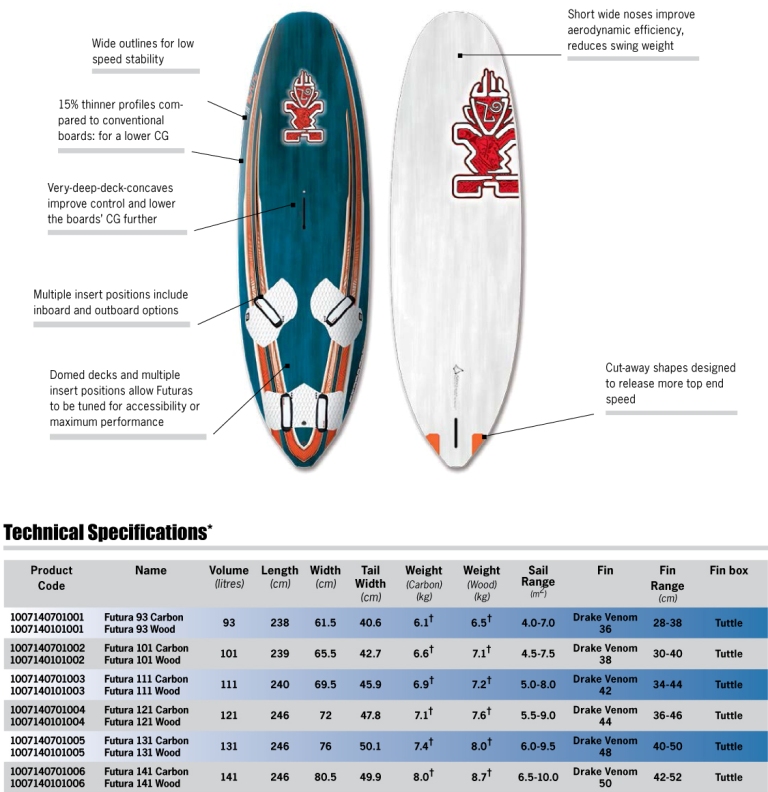

Starboard Futura 2014 :

[Olivier44]

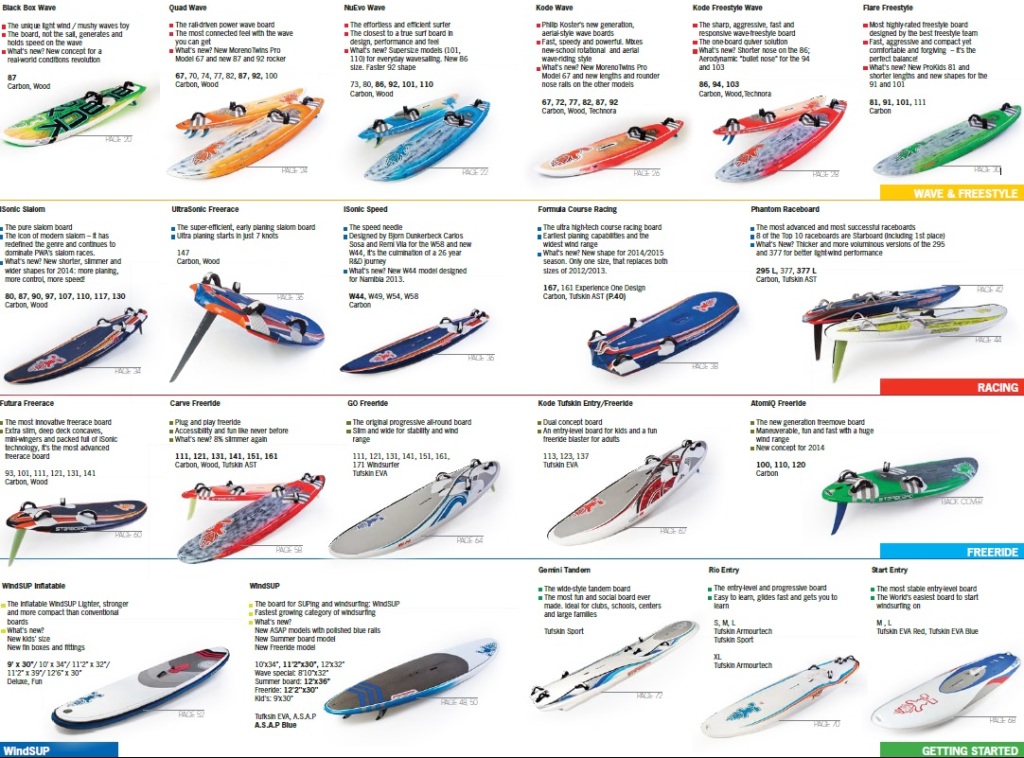

After the release of the Wave & Freestyle range a month ago, Starboard is now proud to present the rest of the 2014 range, our finest collection of boards yet.

http://www.star-board.com/2013/news_eve ... oard-range
http://www.star-board.com/2014/products/boards/
